USB 2.0 Full Speed Device
Supports ISO-7816-1/2/3/4 T=0 and T=1 Protocol
Supports ISO-7816 Class A, B and C Cards
Compliant with PC/SC, CCID Standards - Plug & Play
Readers ID is configurable
Firmware supports upgrading in encryption
Shor circuit & overcurrent protection
Compliant with EMV Level 1
Microsoft WHQL certified
Support All Windows platform, Linux, Mac OS X, Solaris
Basic Parameter | USB Connector | USB Type A | |
Host Interface | USB 2.0 CCID (also compliant with USB 1.1) | ||
Transmission Speed | 12Mbps (USB 2.0 Full Speed) | ||
Smart Card Clock Frequency | 4MHz-12MHz | ||
Extended APDU | Supported | ||
Contact | Supported Card Types | 1.8V, 3V and 5V | |
Smart Card Interface Speed | 10753~625kbps(when supported by card) | ||
ISO/IEC7816, T=0 and T=1 protocol, Class A, B, C cards | |||
Card Size | GSM 11.11 | ||
Support OS | Win2000+/Linux/macOS/UNIX/Android(OTG) | ||
Certificate | CE/FCC/RoHS/EMV Level 1/LTIC/BSMI | ||
Physical Parameter | Material | Metal+ABS+PC | |
Weight | 10g | ||
Status Indicator | Blue and Red | ||

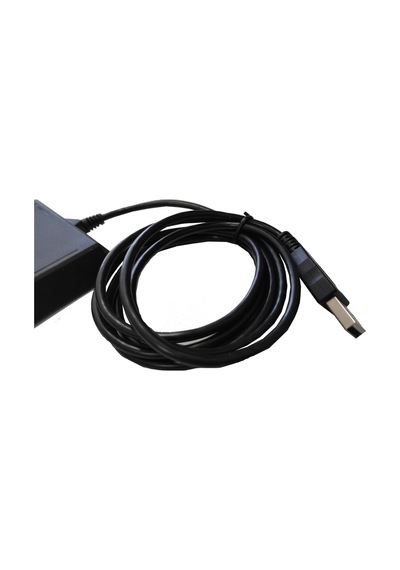

Connector Cable | 1.5m | ||
Color | Black | ||
Contact principle | Landing contact technology | ||
Durability | 100,000 insertions | ||
Dimension | 75.5 * 22 * 8.7mm (L*W*H) | ||
Work Environment | Power supply | USB port 5V DC | |
Working current | < 50mA without card plugged | ||
Working Temperature | 0°C ~ 60 °C | ||
Storage Temperature | -20°C ~ 85°C | ||
Humidity | ?90%(non-condensed) | ||
Standard | Card Reader Standard | ISO-7816 Class A, B, C ( 5V, 3V,1.8V) Standard | |
EMV Level 1 Standard | |||
PC/SC Standard | |||
USB 2.0 Standard | |||
LEA Standard (ICP-Brasil) | |||
CCID Standard | |||
API Standard | PC/SC Lite/WINSCARD API | ||
Security | Physical Security | Short circuit and thermal protection/over-voltage protection | |
High security level chipset | |||
Electrostatic prevention | |||
Firmware Security | Firmware encryption mechanism | ||
Firmware upgradability in encryption | |||
Firmware cannot be read out | |||
Anti-reverse analysis |
